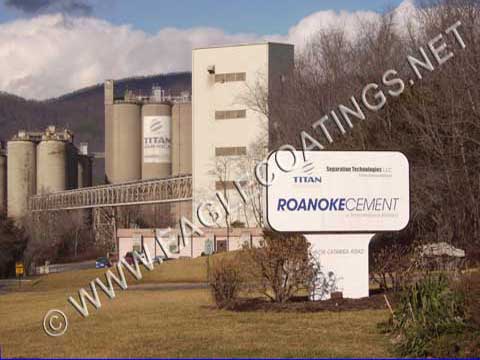

roanoke cemenT

January 2010

Protective Coating System applied behind refractory on the inside of the Cyclone to protect the steel from sulfuric acid. The system we used was first to coat the steel with RUST GRIP ® to seal and protect then HOT PIPE COATING ® and SUPERTHERM ® to reduce heat on the RUST GRIP ®.

Site Preparation:

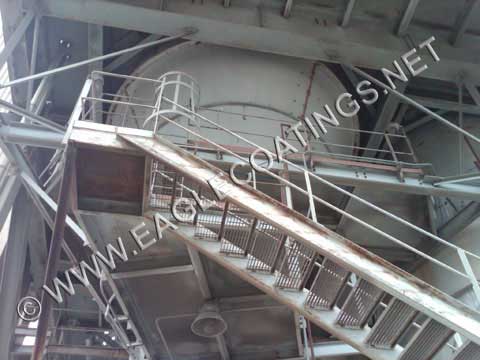

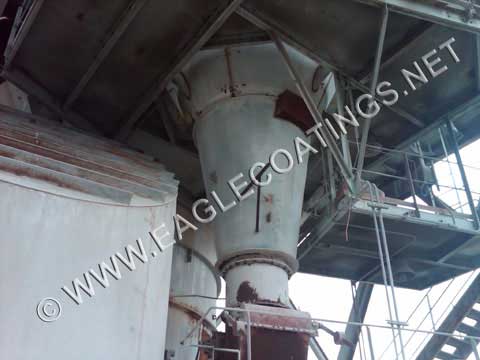

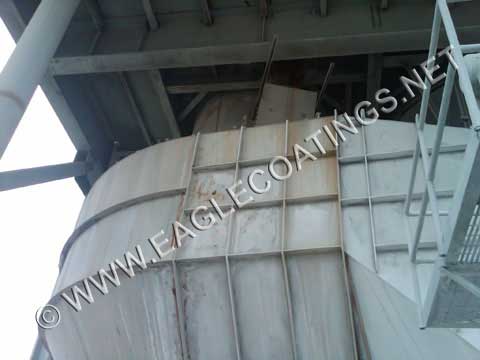

RoanokeCement un wraped
un wraped

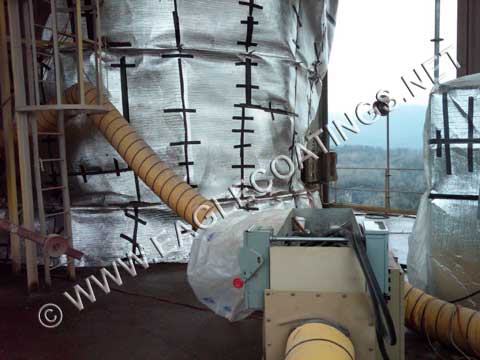

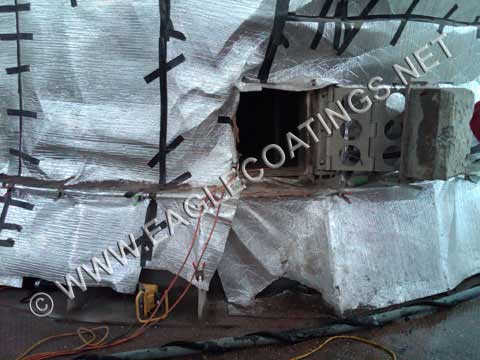

Thermal wrap to retain heat Heat applied to bring interior up to application temperature

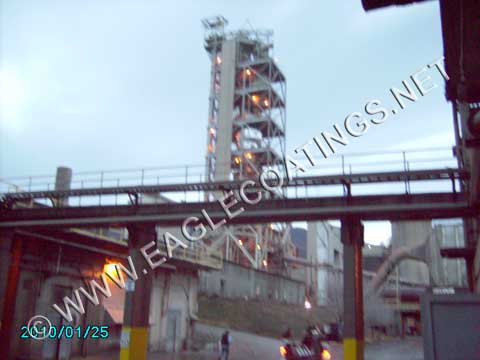

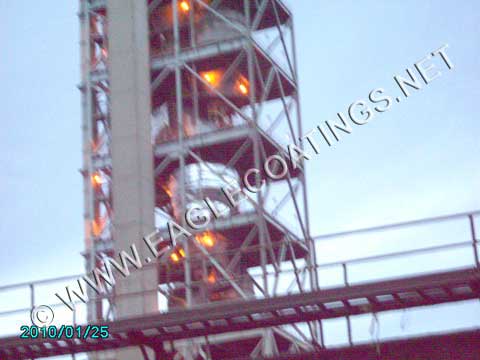

stacks stacks
Assembling scaffolding Existing refractory left on door

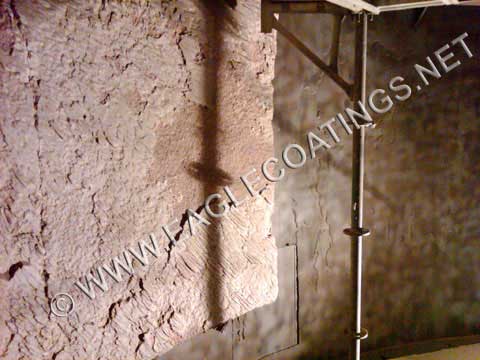

inside prep inside

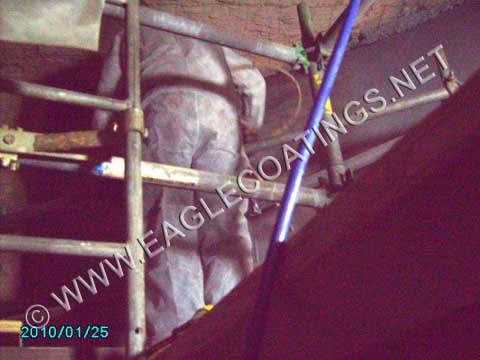

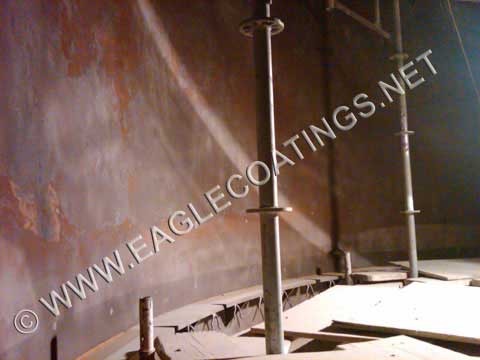

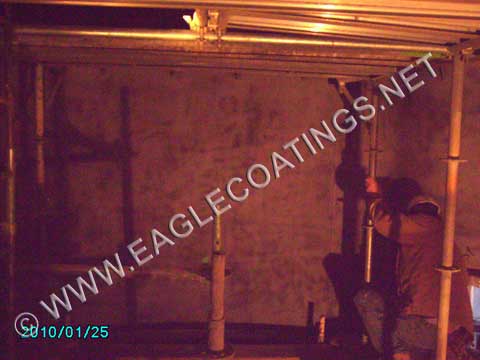

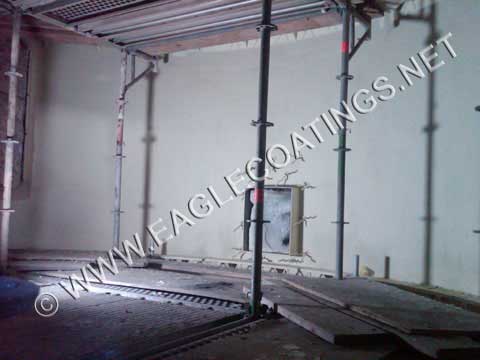

Sand blasting Inside Preparation
inside inside

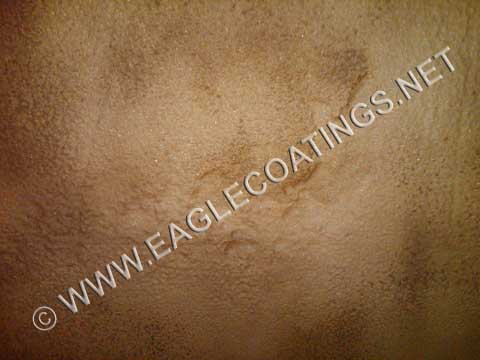

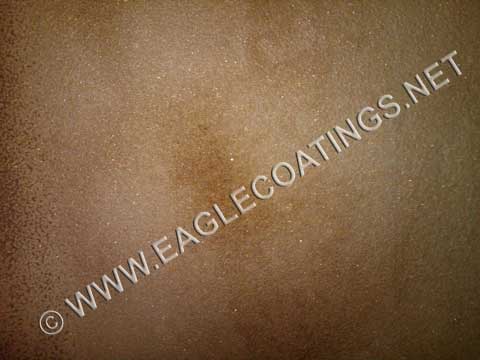

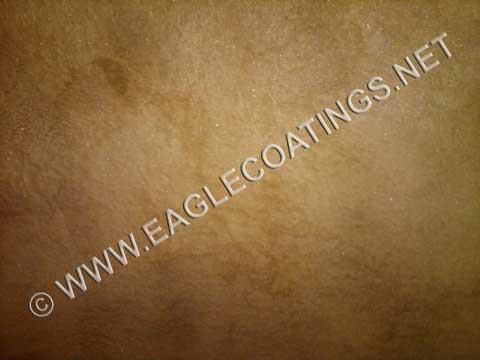

Sand Blasted Metal Surface
mettal Surface mettal surface2 mettal surface 3

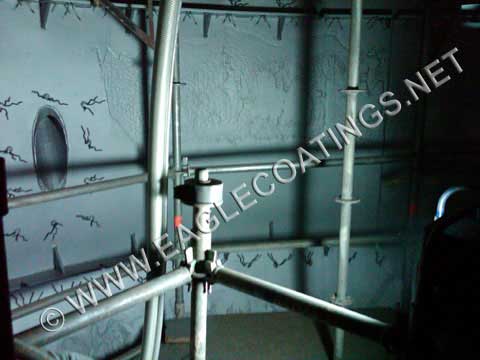

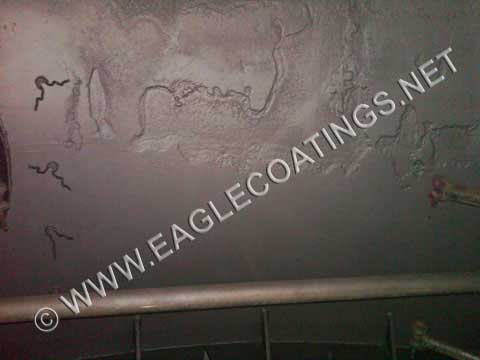

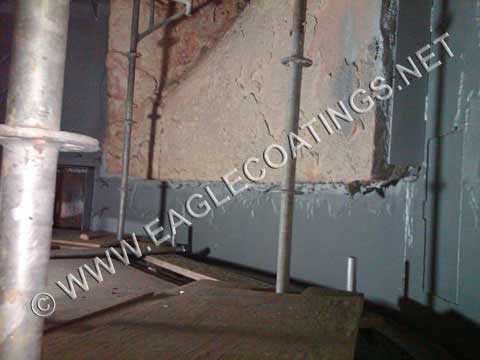

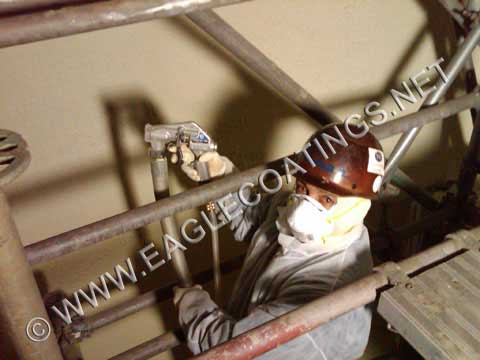

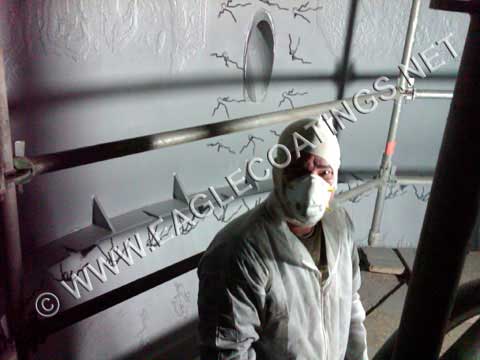

RUST GRIP ® applied at 4mils dry film thickness on Metal Surface
 ristgrip rustgrip
inside rustgrip

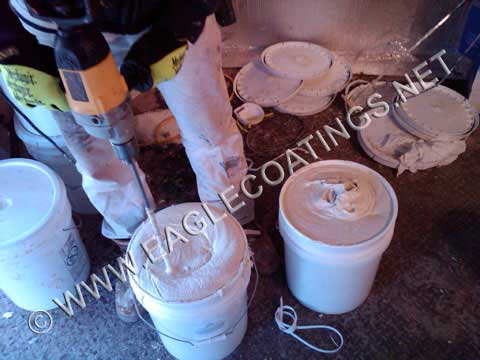

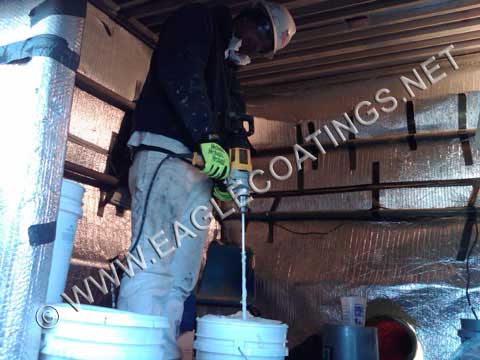

HOT PIPE COATING ® Mixing
mixing mixing

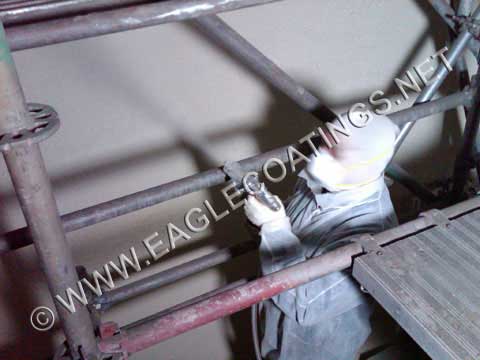

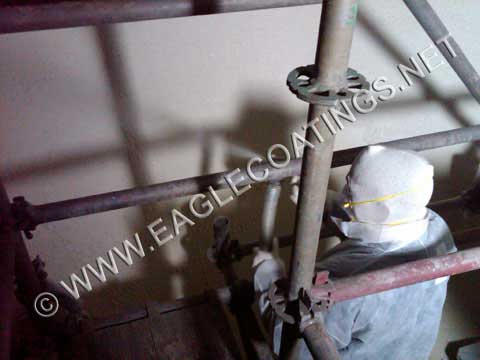

HOT PIPE COATING ® Application to 40mils dry film thickness
ristgrip
application
top coat of SUPERTHERM ® applied to 10mils dry film thickness
applied applied
