Concrete Roof
Jeil Sugar Company Incheon
2004
| Company | Jeil Sugar Company Incheon 1st factory | Date | Oct 19-23, 2004 |
| Application Area | Outdoor concrete roof for water-proofing and insulation | ||
| Problem | Used Styrofoam on the roof for insulation. Some parts damaged. The damaged parts leak water. In summer when temperature is high, it smells awful. |
||
| Application done | 1. Removed Styrofoam and cleaned with water. 2. After drying out, applied InnerSeal twice 3. Applied SuperBase (50 micron) once 4. Applied SunShield 2000 (50 micron) once 5. Applied SuperTherm (250 micron) once 6. Applied EnamoGrip (100 micron) once |
||
 |

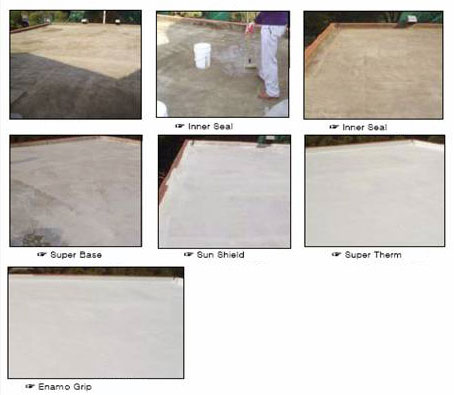

| Pictures from top left 1. Before application; 2. Applying InnerSeal; 3. Applying Innerseal; 4. Applying SuperBase; 5. Applying SunShield; 6. Applying SuperTherm; 7. Applying EnamoGrip (Final) |
| Company | Jeil Sugar Company Incheon 1st factory | Date | Oct 20-23, 2004 |
| Application Area | Outdoor container (used as office) for water-proofing and insulation | ||
| Problem | In summer, the container indoor temperature rises above 40C. Leaks when it rains. | ||
| Application done | 1. Applied SuperTherm twice (100 micron) 2. Applied EnamoGrip (50 micron) once |
||
 |

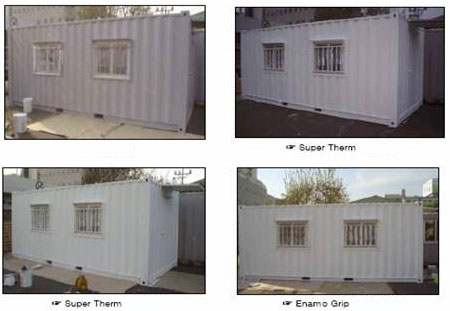

| Pictures from top-left 1. Before application; 2. Applying 1st SuperTherm; 3. Applying 2nd SuperTherm; 4. Applying EnamoGrip (Final) |
